Contents are based on Angular version >=2

To start straight away: Angular Modules are different from ES6 Modules!

JavaScript Modules Primer

I don’t like to repeat the same content, so if you want to get a exhaustive introduction of what JavaScript modules are about, I highly recommend reading the article on “A 10 minute primer to JavaScript modules, module formats, module loaders and module bundlers” by my friend Jurgen Van de Moere.

In short we need JavaScript modules…

• …to avoid leaking code to the global namespace and thus to avoid naming collisions
• …to encapsulate code; to hide implementation details and control what gets exposed to the “outside”
• …to structure our applications (we cannot use a single files)
• …to manage dependencies
• …to reuse code

Prior to ES2015 (ES6) there was no module system in the standard of the ECMAScript language. What we had (and still have) instead, are different implementation patterns for “simulating” a module system: there are the simple IIFEs (Immediately Invoked Function Expression), UMD (Universal Module Definition), AMD (Asynchronous Module Definition) and CommonJS. ES6 finally introduced a standard way of defining modules. This example illustrates a simple ES6 module, importing a dependency math-utils , specifically the sqrt function of that math-utils library. It then defines a couple of math operations and exports the addition and multiplication :

import { sqrt } from 'math-utils';

const addition = (val1, val2) => val1 + val2;
const subtraction = (val1, val2) => val1 - val2;
const multiplication = (val1, val2) => val1 * val2;
const calculateSquareRoot = (val) => sqrt(val);

export { addition, multiplication }

In short, an ES6 module is represented by a single file, having different imports and exports.

What are Angular Modules?

Angular modules represent a core concept and play a fundamental role in structuring Angular applications.

An Angular Module groups together a set of Angular artifacts, namely components, directives, pipes and services that are part of that very same module. That said, it represents a logical grouping into what can be called a feature area of our application (i.e. contacts module, admin module,…). Moreover, an Angular Module also defines dependencies to other modules, that is, what other modules it needs to import and in turn which components, directives or pipes get exported.

@NgModule({
    imports: [ BrowserModule, HttpModule, FormsModule ],
    declarations: [ PersonComponent, ContactComponent, ContactListComponent ],
    providers: [ PersonService, ContactService ],
    exports: [ ContactListComponent, ContactComponent ]
})
export class ContactModule {}

In this example, we see imports such as the FormsModule whose exports can now be used within our ContactModule . Moreover, the module declares what components it uses in the declarations property and the services in the according providers property. As you can see from the exports property, we only export certain components which are then available to other consumers of our ContactModule .

Angular modules are a logical grouping of multiple symbols (components, services,…)

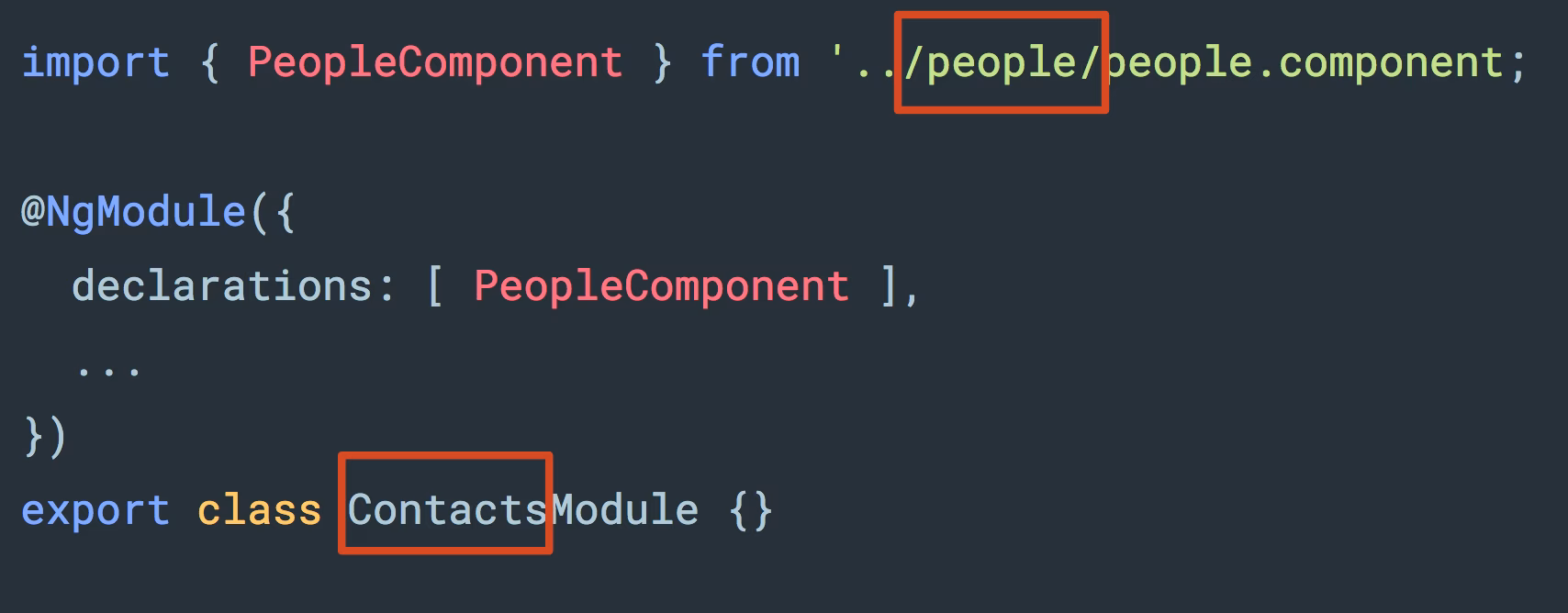

Also, reusing components, services,… is done at the module level. We don’t directly import a single component from another module such as the people.component in the following example.

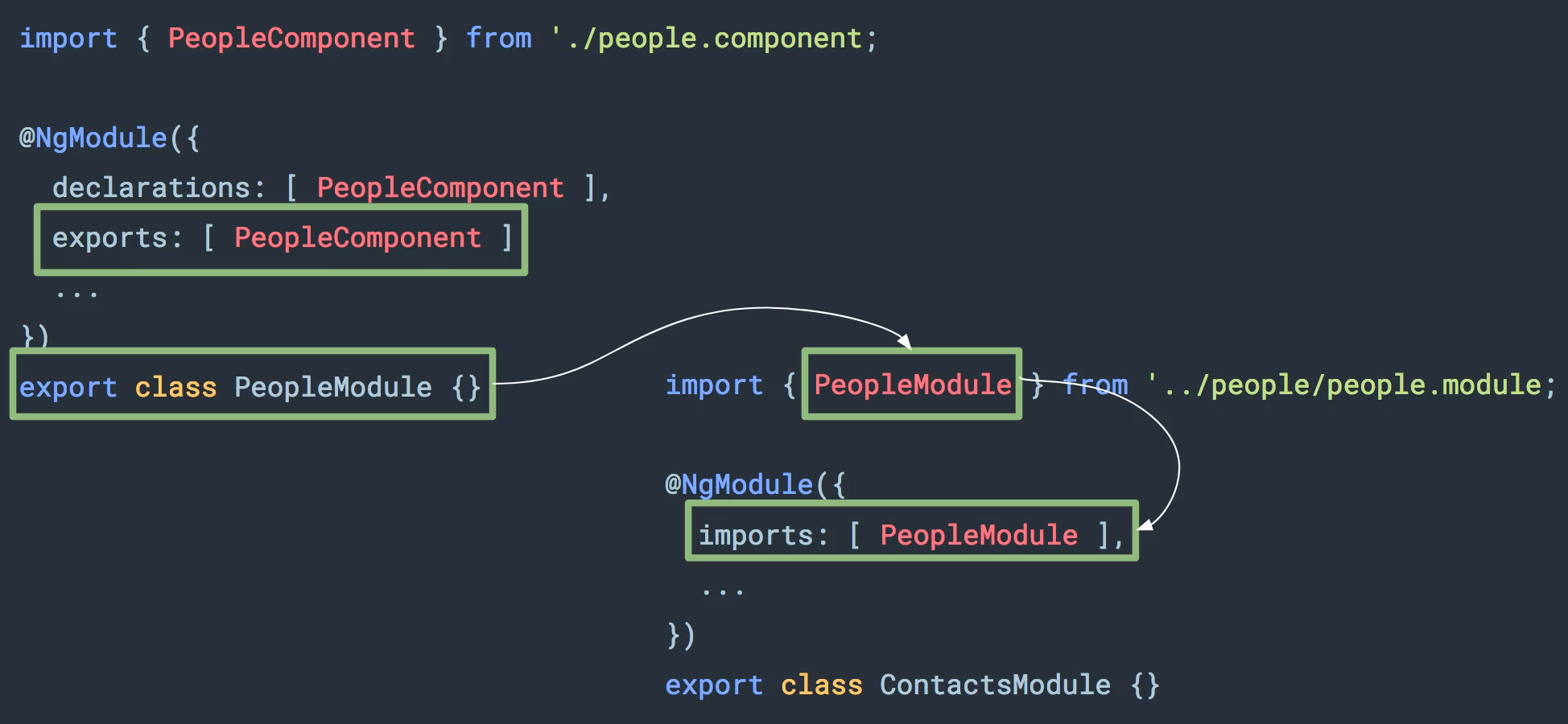

Rather, we have another module, say the PeopleModule , which already imports its own PersonComponent , declares it and also exports it s.t. it can then be used by other modules. Consequently, in our ContactsModule we simply import the PersonModule and can then use the exported PersonComponent within the components of our ContactsModule .

Using a component from another imported Angular module (i.e. the PersonComponent from our PersonModule) is as simple as using it in the template of one of the components that is part of the importing module. In our example the ContactsModule:

@Component({
    selector: 'contact-detail',
    template: `
        ...
        <person [data]="somePerson"></person>
    `
})
export class ContactDetailComponent { ... }

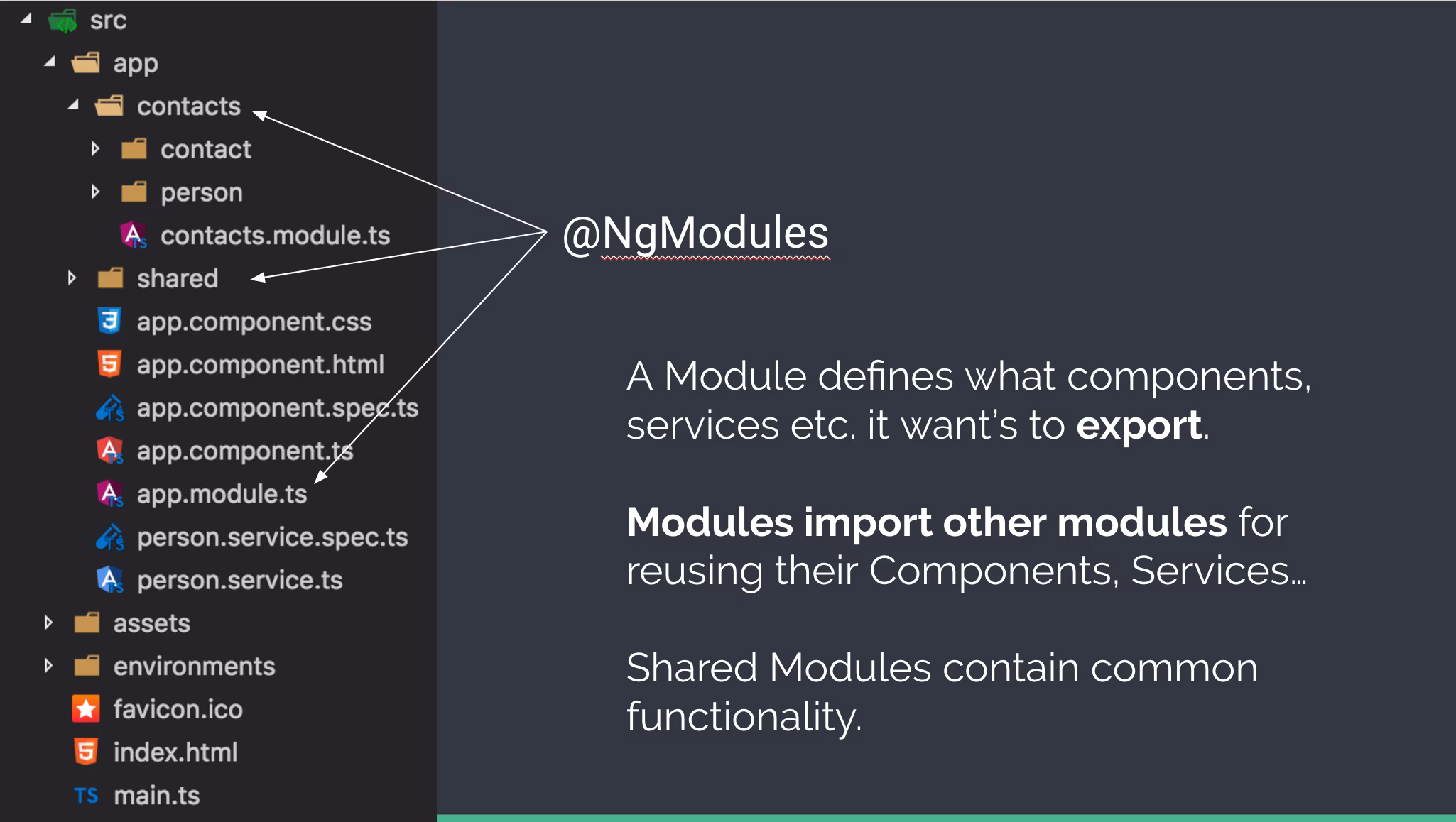

The following shows an example of a modular application with a “shared” and “contacts” module. Internally, the Contacts Module contains other artifacts such as person components.

As such, Angular Modules can be seen as the “unit of reusability” within our application. As we have seen, they define their members, what gets imported and what gets exported. It is also best practice to encapsulate the module specific application routes within the module itself. Hence, ideally, when we want to get rid of a feature of our application, say the contacts feature, we could simply delete the according Angular Module, with a minimum impact on the other areas of the application.

“Angular Modules are the unit of reusability”

We usually tend to structure our application into feature modules (contacts module, orders module, admin module) and “transversal” modules containing shared components and services that are used by other feature modules throughout our application.

Could I simply have one single application module and don’t care?
Technically you can, but it’s definitely not recommended as this most probably results in a poor application structure, is bad for the modularity of your application and you also regret to some very powerful features such as lazy loading which is done at the Angular module level. All in all, don’t do it, it completely messes up your application architecture :smiley:.

To summarize, Angular modules are a means to logically group a set of symbols (components, services,…). An Angular module usually comprises an entire folder.

Want to learn more about NgModule? Check out the FAQ page on the official Angular documentation.

Conclusion

To conclude:

• ES6 modules represent a single file
• The ES6 module syntax is a standardized construct of the ECMAScript language specification

On the other side:

• Angular Modules are an Angular specific construct.
• Angular Modules logically group different Angular artefacts such as components, pipes, directives,…
• Angular Modules in the form of the @NgModule decorator provide metadata to the Angular compiler which in turn can better “reason about our application” structure and thus introduce optimizations
• Important features such as lazy loading are done at the Angular Module level

Thanks a lot to Wassim Chegham (@manekinekko) for reviewing this article!
