I have written about lazy loading components in the past, that covers some of the topics mentioned here as well. Today in this post I’d like to exclusively focus on how to approach lazy loading of an Angular Module in a way that is compatible with ViewEngine and Ivy.

Contents are based on Angular version 8+

What is ViewEngine, what is Ivy?

So first of all, before starting right away, what is ViewEngine, what is Ivy? The Angular team is currently working on a complete inner rewrite of the compiler (codename: Ivy), basically the part of Angular that turns your Angular template HTML into executable, performant JavaScript code. If you’re using Angular verison 7 or less, you’re running on ViewEngine. Starting with Angular 8, Ivy has been shipped behind a flag in experimental mode, while in Angular v9 it is active by default.
”Ivy is an enabler” as Igor Minar said recently at Angular Connect. The rewrite does not only come with a more performant frameowork (at build and runtime), but opens up the way for a lot of new features and more advanced use cases. But that’s another story.

Lazy Loading in Angular

Probably the most used and - if you want - default way of lazy loading modules in Angular is through the router. By simply specifying a route configuration with the import(...), Angular will take care of splitting that corresponding module out into a separate JavaScript file and then to lazy load it on demand once that specific route gets activated.

RouterModule.forRoot([
  {
    path: 'about',
    loadChildren: () => import('./about/about.module').then(m => m.AboutModule)
  }
])

More about that here:

Manually Lazy Load Modules

Let’s assume we have the following, very simple NgModule we want to lazy load:

import { NgModule } from '@angular/core';
import { CommonModule } from '@angular/common';

@NgModule({
  declarations: [],
  imports: [CommonModule]
})
export class LazyModule {
  constructor() {
    console.log('lazy loaded: 🔥');
  }
}

What we want to achieve is to get the console message being printed out.

Activate code splitting

If we want to lazy load a module, that specific module and all its dependencies have to be bundled into a separate JavaScript file, s.t. we can then fetch that file lazily over the network. In Angular the CLI (and underlying Webpack) will take care of this code splitting. All we have to do is to use the dynamic import(...) statement.

Note, prior to Angular 8 you had to use a custom syntax like loadChildren: './about/about.module#AboutModule'.

As soon as we write…

...
onLazy() {
  import('./lazy/lazy.module').then(m => m.LazyModule);
}
...

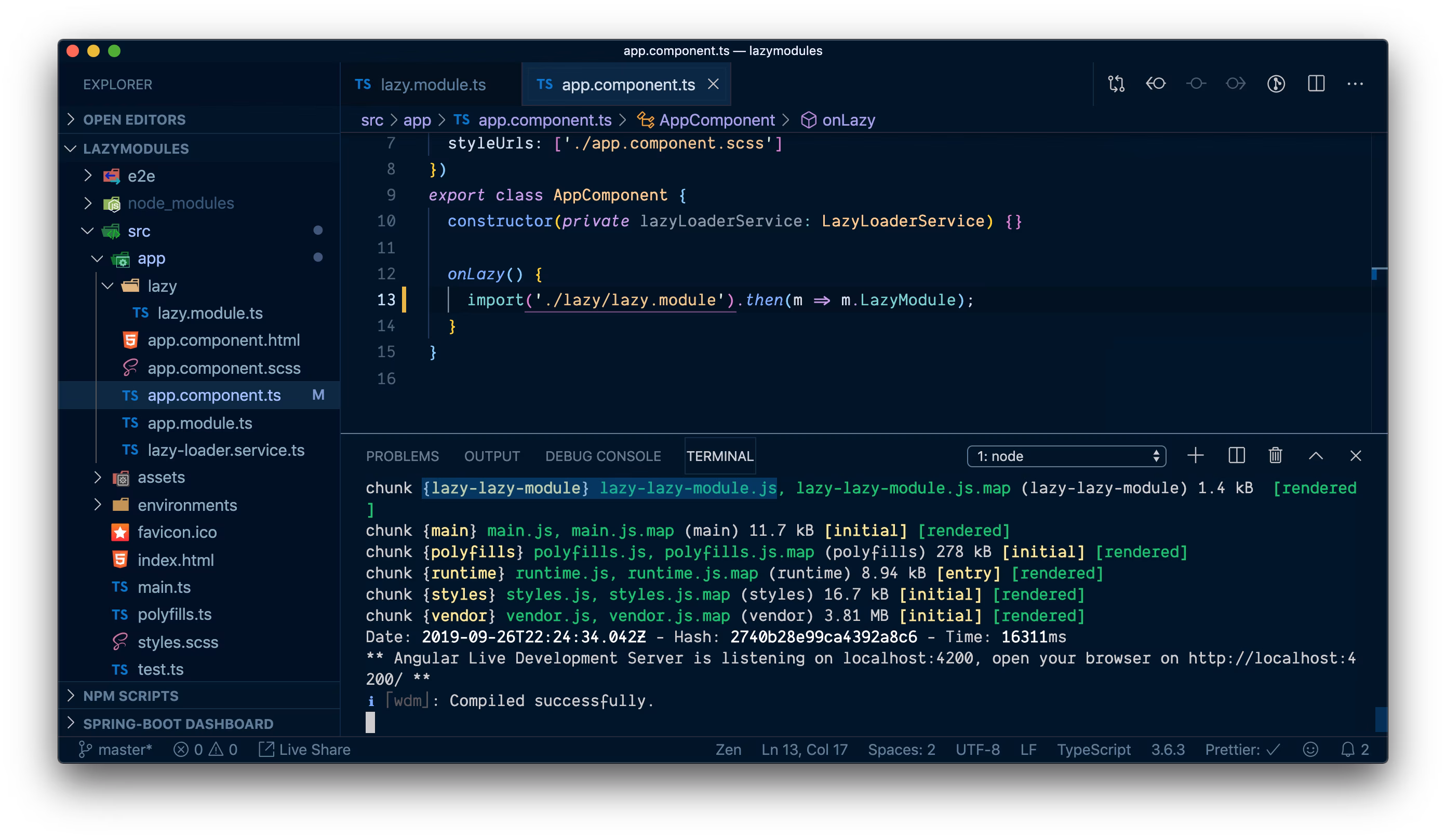

…into a click handler of our AppComponent, the Angular CLI detects it and generates a separate JS bundle for it.

Also, clicking the button that triggers the onLazy() function shows how the bundle is dynamically fetched over the network.

Instantiating the Module

However in the Devtools console we don’t see the excepted console.log message of our LazyModule. The reason is that its file has been fetched, but the NgModule itself didn’t get instantiated. For this purpose let’s create a service LazyLoaderService. We want to be able to change our onLazy() function s.t. we can call our LazyLoaderService and pass in the dynamic import function.

onLazy() {
  this.lazyLoaderService.loadModule(() =>
    import('./lazy/lazy.module').then(m => m.LazyModule)
  );
}

The loadModule function is implemented as follows:

import {
  Compiler, Injectable, Injector, NgModuleFactory, Type
} from '@angular/core';

@Injectable({
  providedIn: 'root'
})
export class LazyLoaderService {
  constructor(private compiler: Compiler, private injector: Injector) {}

  loadModule(path: any) {
    (path() as Promise<NgModuleFactory<any> | Type<any>>)
      .then(elementModuleOrFactory => {
        if (elementModuleOrFactory instanceof NgModuleFactory) {
          // if ViewEngine
          return elementModuleOrFactory;
        } else {
          try {
            // if Ivy
            return this.compiler.compileModuleAsync(elementModuleOrFactory);
          } catch (err) {
            throw err;
          }
        }
      })
      .then(moduleFactory => {
        try {
          const elementModuleRef = moduleFactory.create(this.injector);
          const moduleInstance = elementModuleRef.instance;

          // do something with the module...
        } catch (err) {
          throw err;
        }
      });
  }
}

Note the part in the middle:

...
.then(elementModuleOrFactory => {
  if (elementModuleOrFactory instanceof NgModuleFactory) {
    // if ViewEngine
    return elementModuleOrFactory;
  } else {
    try {
      // if Ivy
      return this.compiler.compileModuleAsync(elementModuleOrFactory);
    } catch (err) {
      throw err;
    }
  }
})
...

We need to distinguish here whether the result of the dynamic import is a NgModuleFactory (in ViewEngine) or whether it is Type<any> (in Ivy). In the latter case we need to use the Compiler to asynchronously compile the module on the fly. Once we have that, we can create the instance of the Module itself:

const elementModuleRef = moduleFactory.create(this.injector);
const moduleInstance = elementModuleRef.instance;

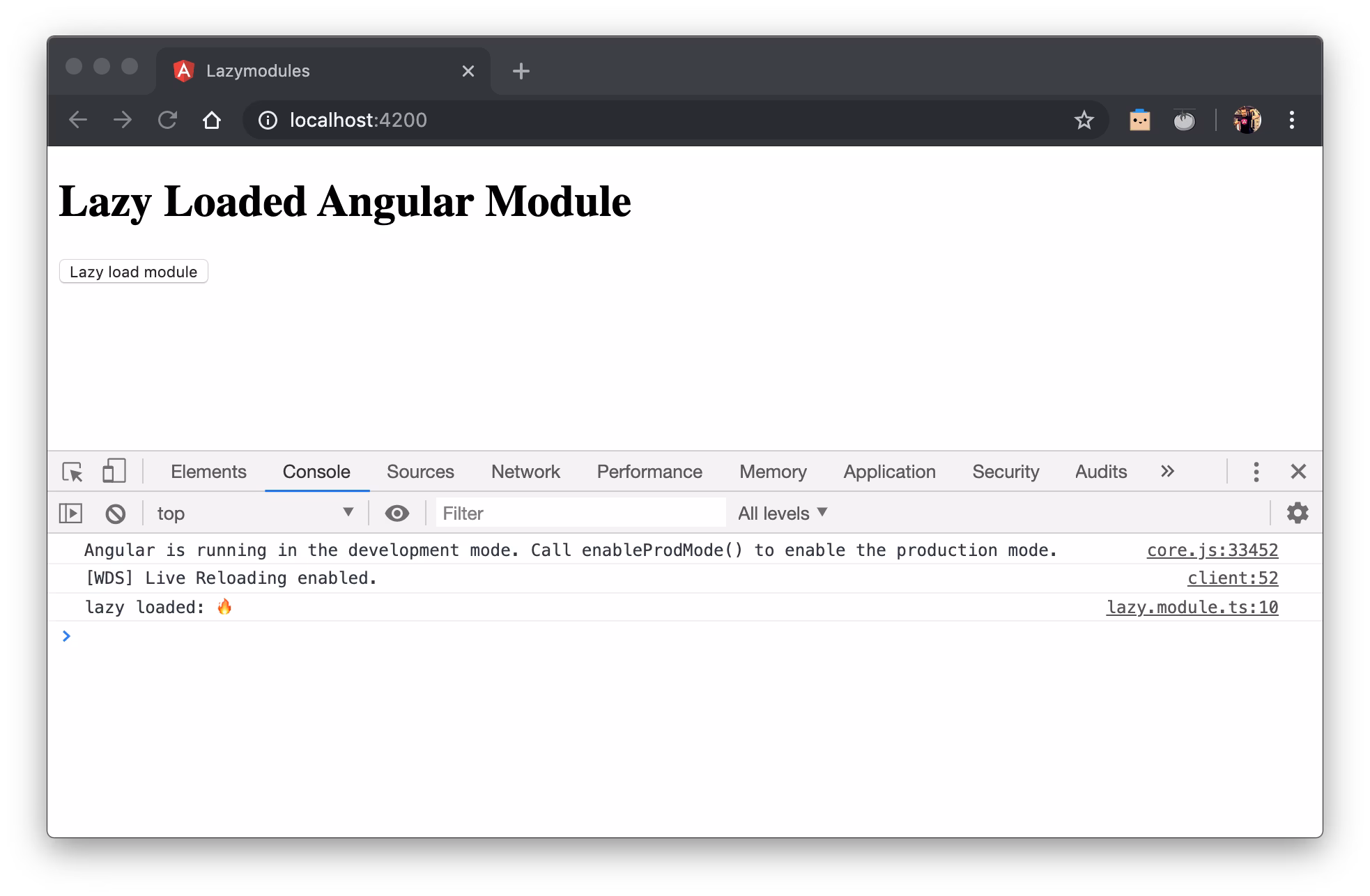

With that, our LazyModule should get loaded and instantiated properly.

Conclusion

Notice that prior to Angular 8 you had to use the NgModuleFactoryLoader which was part of the lazy loading “with magic strings” (i.e. loadChildren: './about/about.module#AboutModule') and which is now deprecated. You also don’t need to register the SystemJsNgModuleLoader provider any more.

{ provide: NgModuleFactoryLoader, useClass: SystemJsNgModuleLoader },

Other than that, you have seen that manually lazy loading Angular Modules isn’t that difficult after all. But it is also only just the first step, as in the end we want to lazy load the component 😉.

Example Code

GitHub repo: https://github.com/juristr/manually-lazy-load-ngmodule.

If you are on Angular 8, my sample repo contains a script that can help you quickly enable Ivy to see how that works:

$ npm run enable-ivy true

// or

$ yarn enable-ivy true
